Technical information
Ambiental temperature
-25–+40 °C
Colour
blue
Contact material
CuZn
Dismantling lenght
50 mm
Housing material
PA6
IP grade
IP67
Max. load
16 A
Mechanical impact protection
IK09
Poles
3P
Stranded wire cross section
1–2,5 mm²
Stripping lenght
10–12 mm
Transport packaging
1
Voltage
230 V~
Weight
0,155 kg
Wiring method
screwed terminal
Product description
Watertight Industrial CEE Cable Connector Socket 230 V / 250 V (16 A, 3P, IP67) – Maximum Safety & Power Reliability in Extreme Environments
Need an ultra-reliable, 100% sealed single-phase connector socket built to handle extreme moisture, dust, and harsh weather? This heavy-duty IP67-rated CEE mobile connector socket delivers total watertight and dust-tight protection. Designed for 3-pole 230 V / 250 V 16 A connections, this standard blue socket provides continuous, safe power distribution for marine hookups, campsites, construction sites, and demanding industrial applications.
Key Features & Benefits:
- IP67 Watertight Protection: Heavy-duty screw-locking cap with internal sealing gaskets creates a completely airtight and watertight barrier against driving rain, washdowns, and dust accumulation.
- Heavy-Duty Construction: Molded from high-impact, UV-resistant thermoplastic engineered to withstand severe physical shock, salt water, and chemical exposure.
- Secure Screw-Locking Collar: Keeps the socket tightly locked to matching plugs, preventing accidental disconnections and maintaining a sealed connection under strain.
- Integrated Cable Gland & Strain Relief: High-torque sealing cable gland firmly grips the cable, preventing moisture ingress and protecting inner wires against accidental pull-outs.
- High-Conductivity Contacts: Solid brass contacts ensure low electrical resistance, minimal heat buildup, and maximum performance during continuous operation.
Ideal Applications:
- Marinas, docks, boat hookups, and shore power connections
- Campsites, RVs, motorhomes, and outdoor recreational setups
- Construction job sites, civil engineering, and outdoor industrial facilities
- Outdoor events, stages, temporary power setups, and lighting rigs
- Agricultural buildings, washdown areas, and high-moisture environments

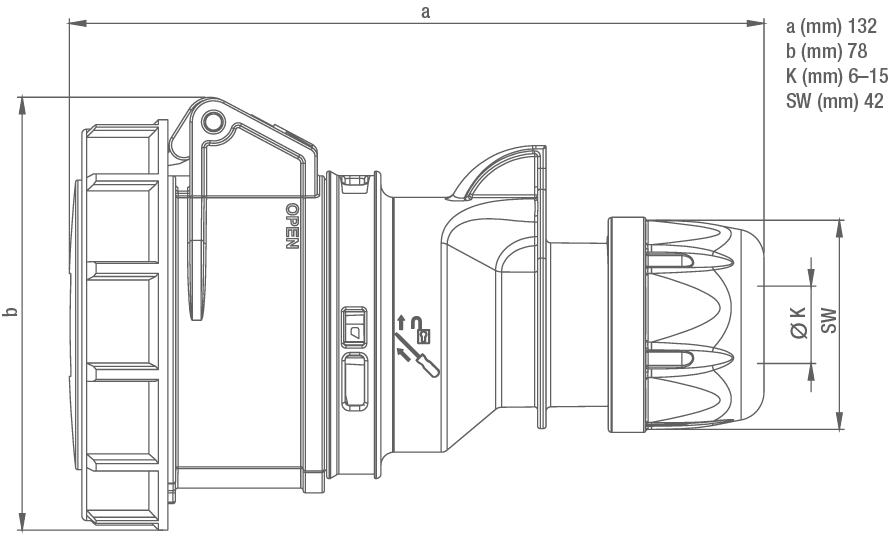

Dimensions:
