Technical information
Ambiental temperature
-25–+40 °C
Cable diameter
6–15 mm
Colour
blue
Contact material
CuZn
Dismantling lenght
50 mm
Housing material
PA6
IP grade
IP67
Max. load
16 A
Mechanical impact protection
IK10
Poles
3P
Stranded wire cross section
1–2,5 mm²
Stripping lenght
10–12 mm
Transport packaging
1
Voltage
230 V~
Weight
0,130 kg
Wiring method
screwed terminal
Product description
Waterproof Industrial CEE Plug 230 V / 250 V (16 A, 3P, IP67) – Maximum Safety & Reliability in Harsh Environments
Looking for a 100% sealed, heavy-duty single-phase power plug built to withstand extreme moisture and dirt? This professional IP67-rated CEE male cable plug provides ultimate protection against water immersion and dust ingress. Designed for 3-pole 230 V / 250 V 16 A connections, this standard blue plug guarantees reliable, continuous power supply for marine applications, camping sites, outdoor construction, and demanding industrial job sites.
Key Features & Benefits:
- IP67 Watertight Protection: Screw-locking ring with heavy-duty internal gaskets creates an airtight and watertight seal against driving rain, water splashing, and dust.
- Rugged Heavy-Duty Housing: Constructed from high-impact, UV-stabilized thermoplastic designed to resist physical stress, salt water, and chemical exposure.
- Secure Screw-Locking Mechanism: Ensures a firm, vibration-proof connection with matching sockets, preventing accidental disconnection under cable strain.
- Integrated Strain Relief Gland: High-torque sealing cable gland securely grips the cable, preventing pull-out damage and ingress around the cable entry.
- High Conductivity Contacts: Solid brass contact pins ensure low resistance, minimal heat buildup, and maximum electrical performance under continuous full load.
Ideal Applications:
- Marinas, docks, boat hookups, and shore power connections
- Campsites, RVs, and motorhomes exposed to heavy weather
- Construction job sites, mining, and outdoor civil engineering
- Outdoor events, stages, temporary power setups, and lighting
- Agriculture, washdown areas, and moisture-prone facilities

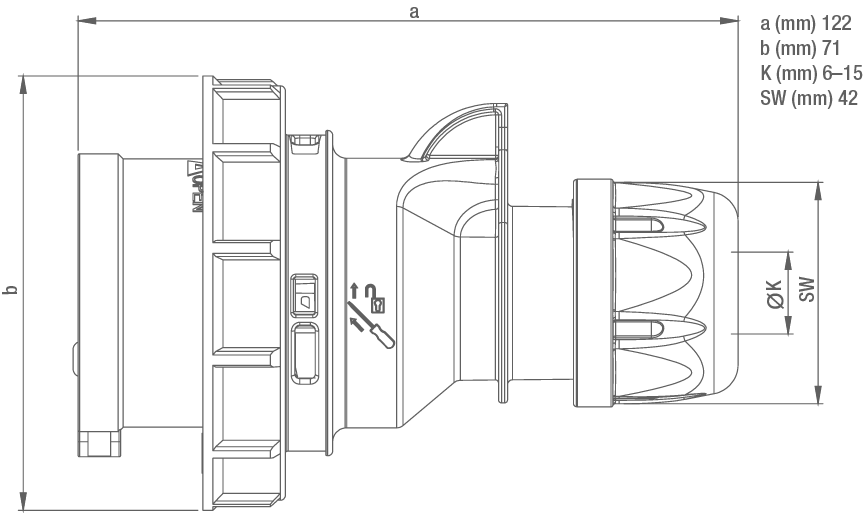

Dimensions:
