Technical information
Ambiental temperature
-25–+40 °C
Cable diameter
11,5–20 mm
Colour
blue
Contact material
CuZn
Dismantling lenght
50 mm
Housing material
PA6
IP grade
IP44
Max. load
32 A
Mechanical impact protection
IK09
Poles
3P
Stranded wire cross section
2,5–6 mm²
Stripping lenght
12–14 mm
Transport packaging
1
Voltage
230 V~
Weight
0,228 kg
Wiring method
screwed terminal
Product description
Looking for a durable, safe single-phase female cable connector for outdoor use, workshop machinery, or travel? This professional IP44 splash-proof CEE mobile connector socket delivers reliable power distribution for all your 230 V~ applications. Available in both 16 A and 32 A 3-pole configurations, this standard blue socket is the perfect choice for campsites, marinas, job sites, and commercial equipment. Its ergonomic housing and spring-loaded hinged lid guarantee hassle-free installation and safe operation.
Key Features & Benefits:
- IP44 Splash-Proof Protection: Spring-loaded hinged cover keeps internal contacts safely protected against water splashes, dirt, and dust when not in use.
- High Versatility: Offered in both 16 A and 32 A ratings to support a wide range of light to heavy-duty single-phase power setups.
- Heavy-Duty Construction: Molded from high-grade, impact-resistant thermoplastic designed to withstand severe physical stress, UV rays, and harsh working environments.
- Fast & Effortless Wiring: Quick-locking body mechanism allows easy disassembly and fast terminal wiring, saving valuable assembly time.
- Secure Strain Relief: High-torque sealing cable gland firmly clamps the cable, providing superior strain relief and preventing accidental cable pull-outs.
- High Conductivity Contacts: Solid brass contacts ensure low electrical resistance, reduced thermal buildup, and consistent energy transfer under continuous operation.
Ideal Applications:
- Caravans, RVs, motorhomes, and campsite power connections
- Marinas, docks, boat hookups, and shore power supply
- Commercial workshops, automotive garages, and light industry
- Job sites, temporary extension leads, and power distribution
- Outdoor stage, lighting, and event setups

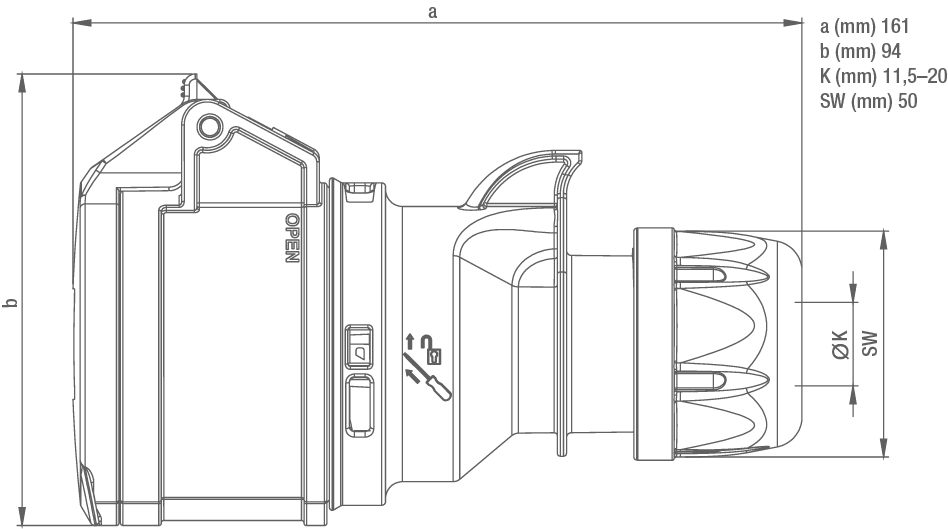

Dimensions:
