Technical information
Ambiental temperature
-25–+40 °C
Cable diameter
11,5–20 mm
Colour
blue
Contact material
CuZn
Dismantling lenght
50 mm
Housing material
PA6
IP grade
IP44
Max. load
32 A
Mechanical impact protection
IK09
Poles
3P
Stranded wire cross section
2,5–6 mm²
Stripping lenght
12–14 mm
Transport packaging
1
Voltage
230 V~
Weight
0,181 kg
Wiring method
screwed terminal
Product description
Industrial CEE Cable Plug 230 V/250 V (16 A / 32 A, 3P, IP44) – Reliable Blue Power Connector for Camping, Marine, and Workshops
Looking for a heavy-duty, ultra-reliable single-phase power plug for outdoor applications or workshop tools? The premium CEE male plug delivers professional precision engineering built for long-term performance. Featuring a 3-pole 230 V/250 V configuration and IP44 splash-proof protection, this standard blue connector is the ideal choice for caravans, boats, job sites, and commercial equipment.
Key Features & Benefits:
- Premium Quality: Engineered from high-impact polyamide (PA6) for maximum durability against mechanical stress, UV exposure, and harsh chemicals.
- IP44 Splash-Proof Rating: Reliably protects internal contacts from splashing water and dust ingress, making it suitable for marine, camping, and outdoor work environments.
- Fast & Tool-Free Assembly: Ergonomic housing design with a quick-locking mechanism allows effortless cable wiring and field assembly in seconds.
- Integrated Strain Relief Gland: High-torque cable gland tightly grips the cable, providing superior strain relief and preventing wire pull-out during frequent use.
- High Conductivity Contacts: Precision-machined brass contacts guarantee low resistance, minimal heat buildup, and reliable power flow under full load.
Ideal Applications:
- Caravans, RVs, motorhomes, and campsite hookups
- Marinas, docks, boats, and shore power connections
- Commercial workshops, garages, and job sites
- Portable power distribution boxes and extension leads
- Temporary outdoor events, lighting, and power setups

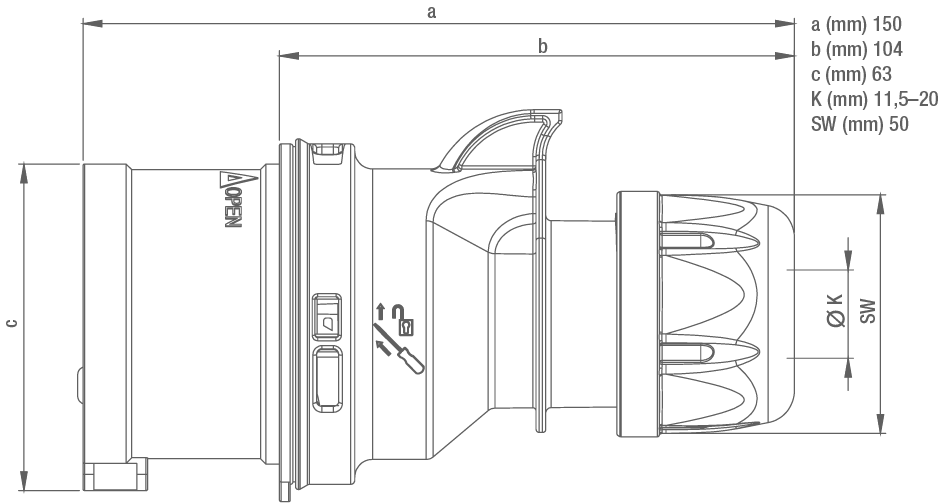

Dimensions:
