Digital clamp meter
Technical information
Battery
3 x 3 V CR2032
Conductivity testing Conductivity measurement
yes
Dimensions
151 x 62 x 34 mm
Diode testing
yes
IP grade
IP20
Measurement range (Ω)
2000 Ω – 200 KΩ
Measurement range AC (A)
20 A – 400 A
Measurement range AC (V)
1 V – 300 V
Measurement range DC (V)
1 V – 300 V
Transistor testing hFE (PNP & NPN)
no
Transport packaging
44
Weight
138 g (with batteries)
Working temperature
0 °C – 40 °C <75% R.H.
Product description

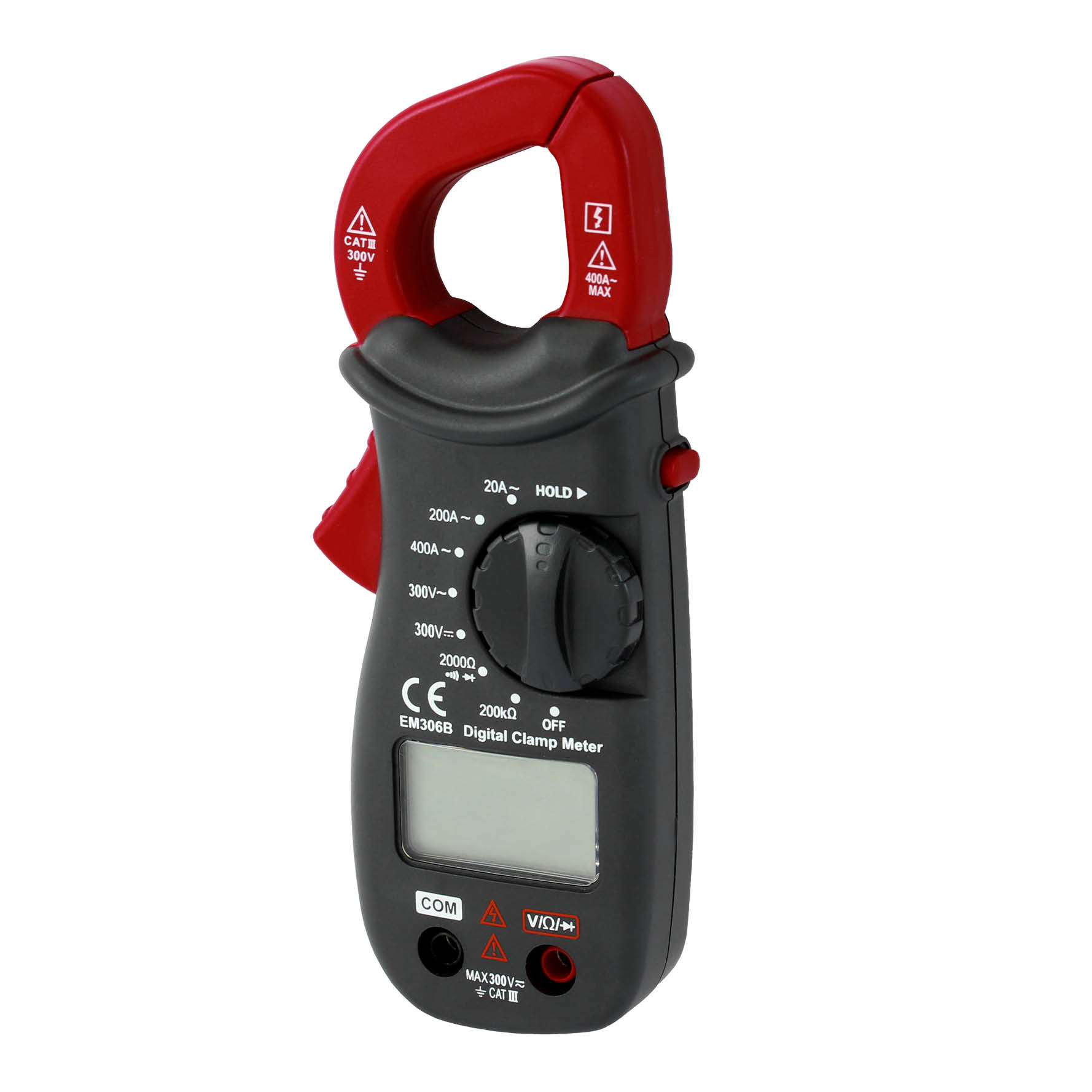

Commel digital clamp meter is a practical measuring tool for quick and easy measurement of electrical values. It measures AC/DC voltage up to 300 V, AC current from 20 to 400 A and resistance from 200 Ω to 200 kΩ. Its compact design and clear digital display make it suitable for electricians, service technicians and household use.
Additional Features:
- Diode and continuity testing
- Data Hold function
- Overload protection
- Low battery indication
- Test leads included
Applications:
Suitable for measuring and checking electrical installations, appliances, cables and other electrical systems, particularly for servicing, maintenance and troubleshooting.
